• 19.5" argent painted steel wheels
• 225/70R19.5G BSW tires -inc: (2) front all-season & (4) rear all-season tires
• Black painted steel front bumper w/grained MIC top cover
• Front fender vents
• Black painted grille
• Dual beam jewel headlights
• 3-blink lane change signal
• Roof clearance lights
• Manual telescoping trailer tow mirrors w/manual glass & 2-way fold
• Solar tinted glass
• Fixed rear window
• Variable intermittent windshield wipers
• Front license plate bracket
• Black door handles
• Underhood service light

• AM/FM stereo -inc: digital clock, (2) speakers

• Manual air conditioning
• HD vinyl 40/20/40 split bench seat -inc: center armrest, cup holder, storage
• Manual driver lumbar support
• Black vinyl full floor covering
• Color-coordinated scuff plates
• Tilt & telescoping steering wheel/column
• Black vinyl steering wheel
• Instrumentation -inc: multifunction switch message center w/ice blue lighting
• Oil minder system
• Inside hood release
• Dash-top tray
• Color-coordinated instrument panel -inc: glove box, (4) air registers w/positive shutoff, pwr point & (4) upfitter switches
• I/P mounted dual cup holders
• Secondary glove box
• Auxiliary pwr point
• Dual front grab handles
• Front passenger roof ride handles
• Color-coordinated molded cloth headliner
• 11.5" day/night rearview mirror
• Color-coordinated door trim panel -inc: armrest, grab handle, reflector
• Color-coordinated vinyl sun visors -inc: LH pocket, RH insert
• Door activated dome lamp w/delay, I/P switch operation
• Dual map lights
• Dual color-coordinated coat hooks

• Anti-lock braking system (ABS)
• Driver/front passenger frontal, side & curtain airbags
• Passenger side airbag deactivation switch
• Color-coordinated 3-point safety belts w/front outboard height adjustment
• Child tethers on all passenger seats
• SOS post crash alert system
• Dual-note electric horn

6.7L OHV 32-VALVE V8 POWER STROKE DIESEL ENGINE

• 200-amp HD alternator
• dual 78 amp/hr 750 CCA batteries
• Intelligent Oil Life Minder
• diesel exhaust fuel tank
• split-shaft calibration compatibility

• GVWR: 16,500 lb Payload Package
• High Capacity Trailer Tow Package
• Order Code 650A
• 2 Speakers
• AM/FM radio
• AM/FM Stereo
• Air Conditioning
• Power steering
• Traction control
• 4-Wheel Disc Brakes
• ABS brakes
• Dual front impact airbags
• Dual front side impact airbags
• Front anti-roll bar
• Overhead airbag
• Passenger cancellable airbag
• Rear anti-roll bar
• Cruise Control
• Dual rear wheels
• Engine Block Heater
• 6-Ton Hydraulic Jack
• Front reading lights
• Outside temperature display
• Passenger vanity mirror
• Tachometer
• Telescoping steering wheel
• Tilt steering wheel
• HD Vinyl 40/20/40 Split Bench Seat
• Front Center Armrest w/Storage
• Trailer Brake Controller
• 19.5" Argent Painted Steel Wheels
• Variably intermittent wipers
• 4.88 Axle Ratio
• Limited-Slip w/4.30 Axle Ratio

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): HD 200
• Maximum Alternator Capacity (amps): 155
• Maximum Alternator Watts: - TBD -
• Maximum Alternator Watts: 2100
• Cooling System
• Total Cooling System Capacity (qts): 27.8
• Total Cooling System Capacity (qts): 27.5
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5600
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 12000
• Curb Weight - Front (lbs): 4377
• Curb Weight - Front (lbs): 3714
• Curb Weight - Rear (lbs): 3003
• Curb Weight - Rear (lbs): 2810
• Gross Vehicle Weight Rating Cap (lbs): 16500
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 5600
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 12000
• Axle Type - Front: Monobeam
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 7000
• Axle Capacity - Rear (lbs): 12000
• Axle Ratio (:1) - Rear: 4.88
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.26
• Stabilizer Bar Diameter - Rear (in): 1.06
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14.5 x 0.5
• Rear Brake Rotor Diam x Thickness (in): 15.4 x 0.5
• Tires
• Front Tire Order Code: TFB
• Rear Tire Order Code: TFB
• Front Tire Size: 225/70R19.5G
• Rear Tire Size: 225/70R19.5G
• Front Tire Capacity (lbs): 3970
• Rear Tire Capacity (lbs): 3970
• Revolutions/Mile @ 45 mph - Front: 653
• Revolutions/Mile @ 45 mph - Rear: 653
• Wheels
• Front Wheel Size (in): 19.5 x 6.0
• Rear Wheel Size (in): 19.5 x 6.0
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.8
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 42.3
• Turning Diameter - Wall to Wall (ft): 44.2
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 40.0
• Fuel Tank Location: Aft-Axle
• Exterior Dimensions
• Wheelbase (in): 140.8
• Length, Overall w/o rear bumper (in): 226.5
• Width, Max w/o mirrors (in): 93.9
• Height, Overall (in): 80.3
• Overhang, Front (in): 38.1
• Overhang, Rear w/o bumper (in): 47.6
• Front Bumper to Back of Cab (in): 118.4
• Cab to Axle (in): 60.0
• Cab to End of Frame (in): 107.6
• Ground to Top of Frame (in): 33.2
• Frame Width, Rear (in): 34.2
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): 8.1
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 40.7
• Front Leg Room (in): 41.1
• Front Shoulder Room (in): 68.0
• Front Hip Room (in): 67.6
• Summary

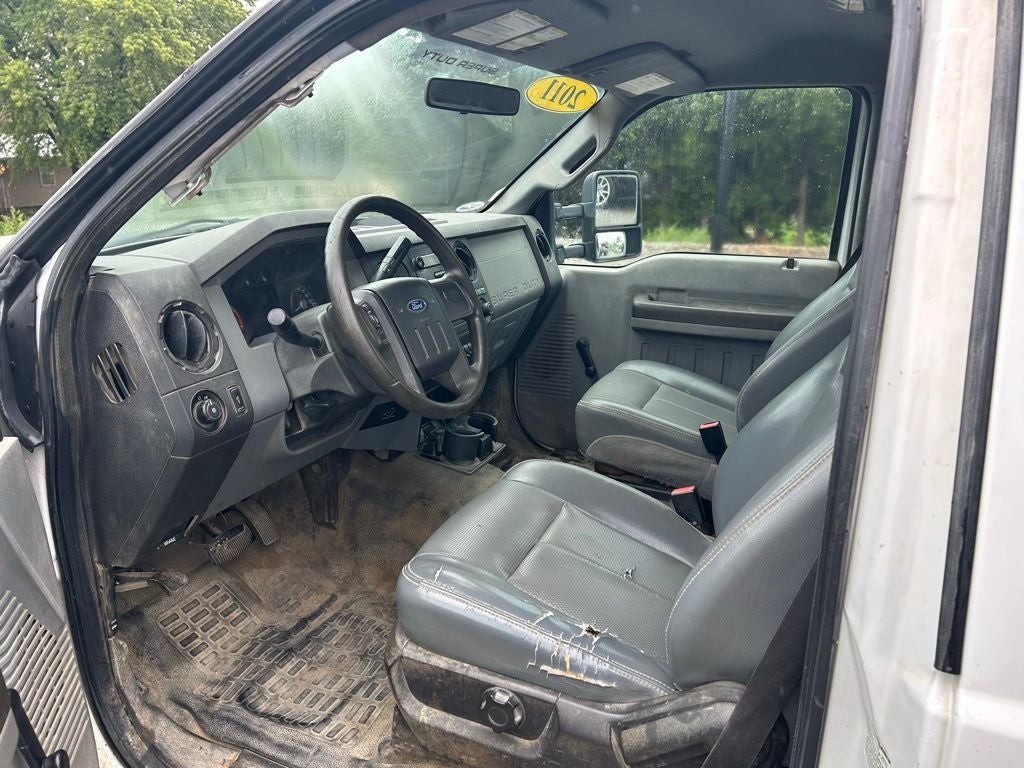

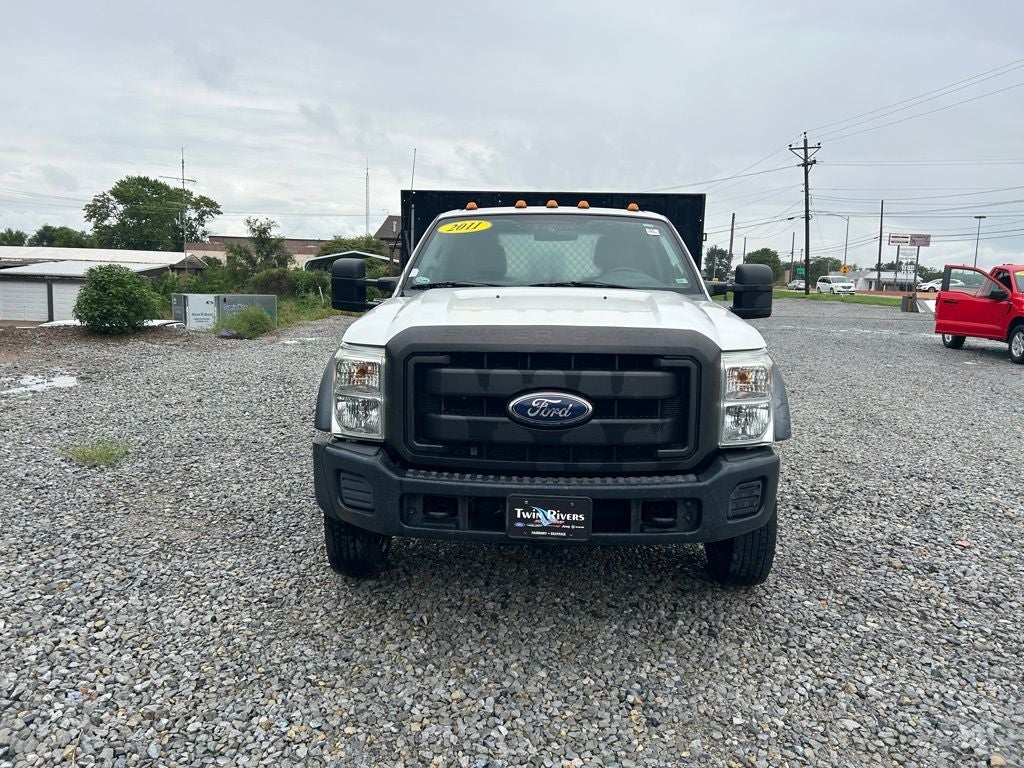

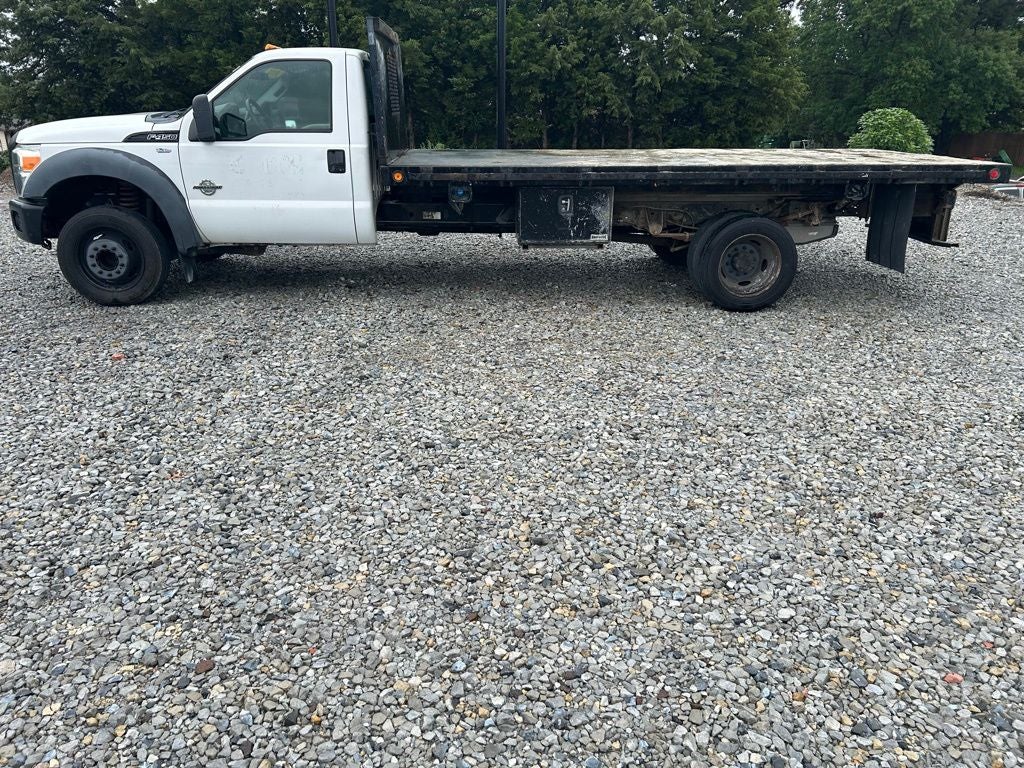

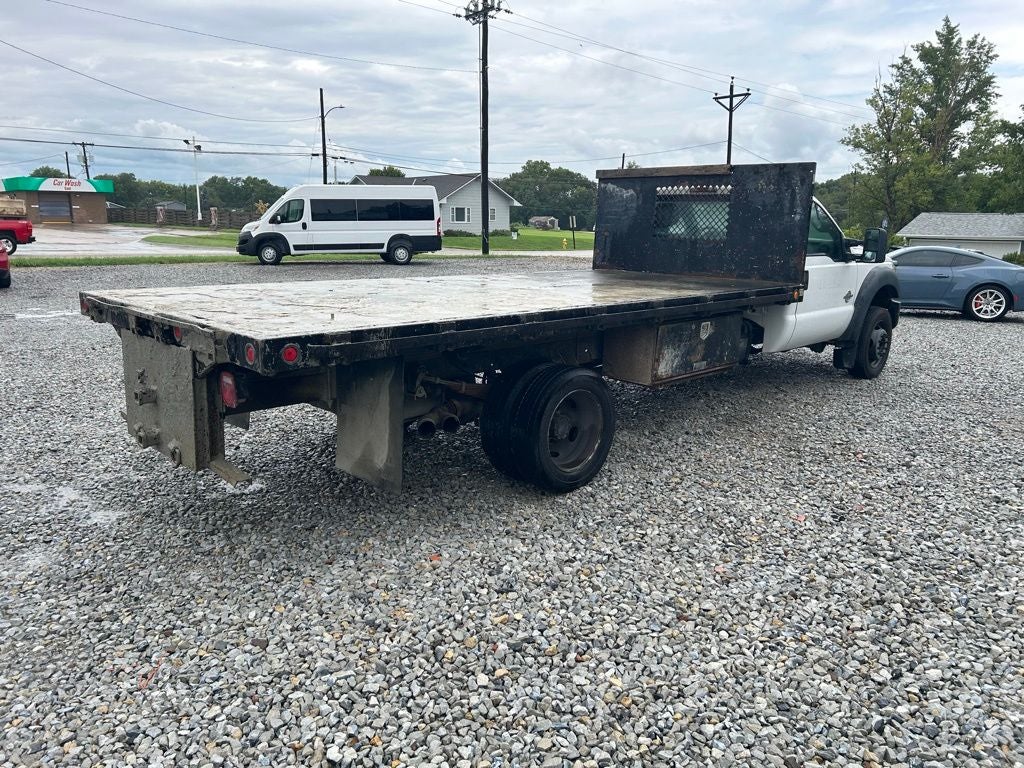

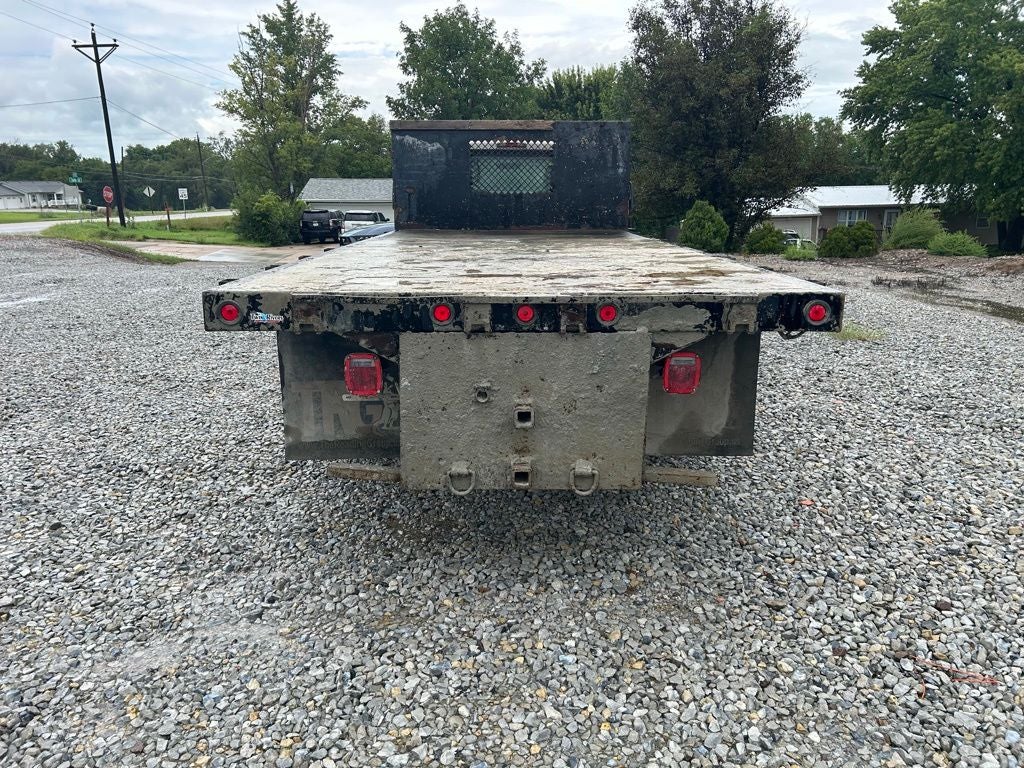

• Vehicle Name: Ford Super Duty F-450 DRW
• Body Style: Regular Cab
• Body Code: 141" WB
